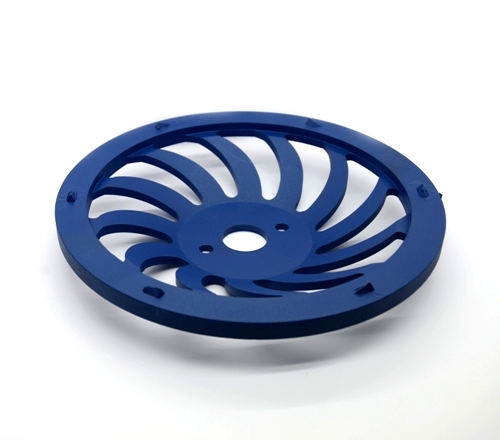

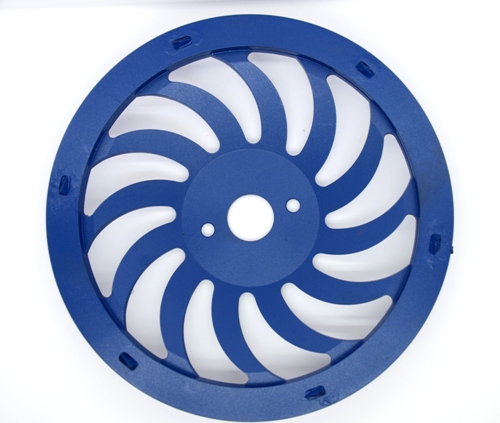

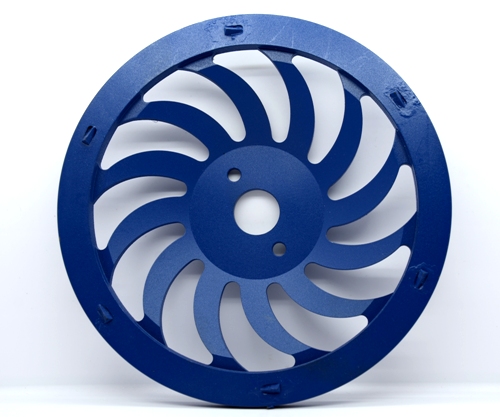

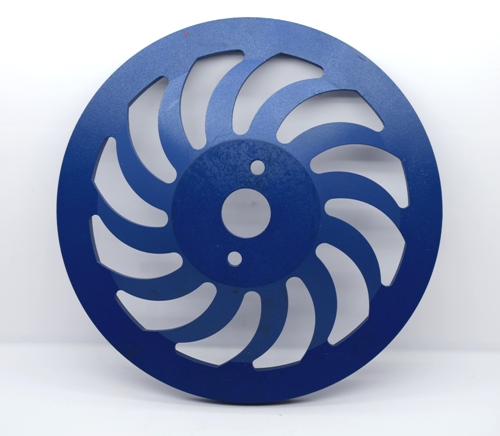

5″ Diamond PCD Cup Wheel

5″ Diamond PCD Cup Wheel

Item No: PCDCW005


  • Super light shank design, small PCD chips for easy removing operation.
  • The versatile PCD cup wheel scrapes and rips coatings from the surface.
  • The polycrystalline diamonds will never load up or smear the coatings like a metal bond diamond tool
  • High quality PCD can make the diamond cup wheel work with aggressive speed.
  • The PCD  cup wheel is recommended working for dry
  • the diamond PCD cup wheel is installed on angle grinders for use.

Euipment:  Angle grinders.

Segment: 3X3X8mm PCD



Contact Form Demo (#3)


5″ diamond PCD  cup wheel is manufactured with pro-quality PCD which makes it an ideal tool for removing tough coatings on concrete floor surface.

The coatings could be epoxy, mastics, glue, urethane, painting etc.

PCD bits are very hard and super abrasive resistance material which makes the PCD cup wheel quite easy for use.

Unlike those diamond cup wheels, PCD cups never grind the coatings. Instead, it penetrates, cuts those coatings and remove them in quite an efficient way.

Our PCDCP005 series PCD cup wheels done with light shanks and with small size 3X3x8 mm PCD chips which could lead to a  quite aggressive and smooth using.

An angle grinder is always the right equipment for installing those PCD cup wheels. 7/8″ arbor with an 5/8″-11 /M14 threaded adapter are very common supplies.

Using tips:

  • Always check the right installation of  diamond PCD cup wheel before using.
  • Do wear personal protection during work.
  • Always check the removal of coating to make sure you are using the right pressure.

Sizes Available:

Diameter Arbor
4.5” 7/8”
4.5” 5/8”-11, M14
5” 7/8”
5” 5/8”-11, M14
7” 7/8”
7” 5/8”-11, M14

Special design, ODM, OEM service available upon request.
