ZMD-W Diamond Micron Powders for Wire Saw

Features:

  • We choose high strength MBD grade diamond powder with good purity as raw material
  • Particle size of the micron diamond powder is in super tight distribution
  • The ZMD-W diamond micron powder is with good wear resistance
  • The diamond micron powder is in with high purity
  • We control the producing process strictly, large size is sifted out after professional reshaping & classifying.
  • Used for mono crystalline silicon & poly crystalline silicon slicing, LED panels and other valuable and fragile materials grinding & polishing.
PRODUCT CATEGORIES

GET A QUICK QUOTE

Contact Form Demo (#3)

Features of ZMD-W Diamond Micron Powder:

We choose high strength MBD diamond as raw material. After strict reshaping and classifying process, we get ZMD-W diamond micron powder specially used for wire saws.

  • High strength, low impurities and good wear resistance.
  • Good and consistent crystal shape, tightly concentrated particle size distribution, works with high efficiency  and good sharpness.
  • Nickel coated ones can be offered upon request.

Application:

The ZMD-W micron diamond powder for wire saw is used for diamond wire saw and other diamond cutting tools making. It can be used for mono crystalline silicon & poly crystalline silicon processing.

Also it can be used for tools which do LED panel, semiconductor as well as some valuable and fragile materials. Besides wire saws, it could also do other precision tools for grinding and polishing

Particle Size Available:

AVAILABLE MICRON DIAMOND POWDER PARTICLE SIZE
China GB International particLE size (μm) Japan Size D50 (μm)
W0.25 0-0.25 60000 0.11-0.20
W0.5 0-0.5 30000 0.20-0.30
W1- 0-1 20000 0.50-0.60
W1 0.5-1 15000 0.60-0.80
W1.5- 0-2 13000 0.80-1.00
W1.5 1-2 12000 1.10-1.30
W2.5- 1-3- 10000 1.60-1.70
W2.5 1-3 8000 1.70-1.90
W2.5+ 1-3+ 7000 1.90-2.10
W3- 2-3 6500 2.20-2.60
W3 2-4 6000 2.60-3.00
W3.5 2-5 5000 3.10-3.40
W5- 3-5 4000 3.50-4.20
W5 4-6 3500 4.40-5.00
W7- 4-8 3000 5.00-6.00
W7 4-8+ 2500 6.10-6.50
W10- 5-10 2000 6.50-7.30
W10 6-12- 1800 7.30-8.30
W10+ 6-12 1500 8.30-9.00
W14- 8-12 1500 9.10-10.50
W14 8-16 1300 10.0-12.0
W20- 10-20 1200 12.5-15.0
W20 12-22 1000 15-17
W20+ 15-25 800 18-20
W28- 20-30- 700 20-23
W28 20-30 600 23-26
W28+ 20-40 500 26-29
W40- 30-40- 450 29-32
W40 30-40 400 32-36
W40+ 35-45 350 37-41
W50- 40-50 320 41-45
W50 40-60 300 45-50

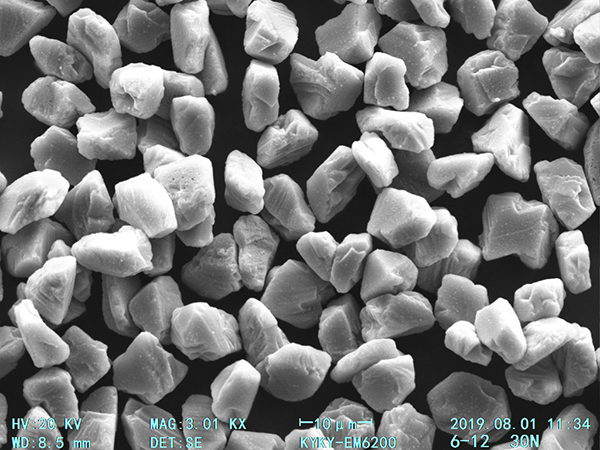

ZMD-W micron diamond powder with tight particle size distribution
