ZMD-S RVD Diamond Powder with Good Sharpness

  • We choose resin bond synthetic diamond powder as raw material
  • The RVD type micron diamond powder is featured with super good sharpness and self-sharpness
  • A wide range of shapes & size for multiple grinding purpose
  • Low impurity in the micron diamond powder
  • Recommended for resin bond system and used on workpieces where tight surface tolerance is not mandatory.
PRODUCT CATEGORIES

GET A QUICK QUOTE

Contact Form Demo (#3)

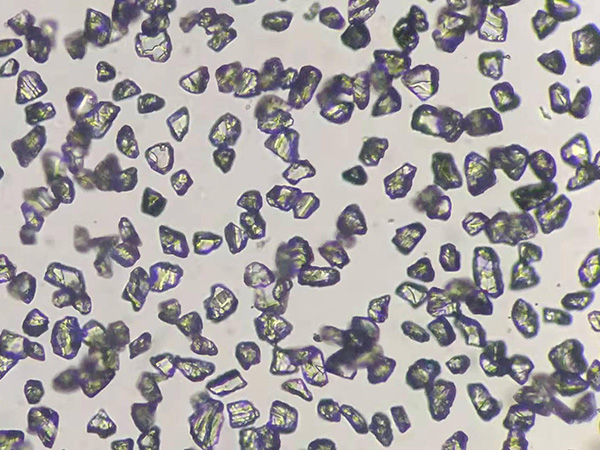

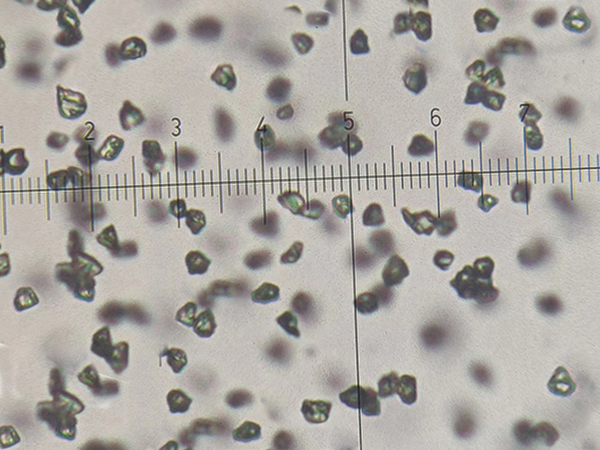

ZDM-S RVD grade diamond powder is resin bond micron diamond powder designed with excellent self-sharpness. It is featured with a wide range of shape & size. And it can meet multi-purpose surface requirement.

Application of ZMD-S RVD Diamond Powder:

It is recommended for resin bond diamond tools grinding tools, where tight surface tolerance is not mandatory. It can be used for polishing tools, abrasive paste, lapping liquid made and used for stone polishing, crystal polishing etc.

Size Available:

AVAILABLE MICRON DIAMOND POWDER PARTICLE SIZE
China GB International particle size (μm) Japan Size D50 (μm)
W0.25 0-0.25 60000 0.11-0.20
W0.5 0-0.5 30000 0.20-0.30
W1- 0-1 20000 0.50-0.60
W1 0.5-1 15000 0.60-0.80
W1.5- 0-2 13000 0.80-1.00
W1.5 1-2 12000 1.10-1.30
W2.5- 1-3- 10000 1.60-1.70
W2.5 1-3 8000 1.70-1.90
W2.5+ 1-3+ 7000 1.90-2.10
W3- 2-3 6500 2.20-2.60
W3 2-4 6000 2.60-3.00
W3.5 2-5 5000 3.10-3.40
W5- 3-5 4000 3.50-4.20
W5 4-6 3500 4.40-5.00
W7- 4-8 3000 5.00-6.00
W7 4-8+ 2500 6.10-6.50
W10- 5-10 2000 6.50-7.30
W10 6-12- 1800 7.30-8.30
W10+ 6-12 1500 8.30-9.00
W14- 8-12 1500 9.10-10.50
W14 8-16 1300 10.0-12.0
W20- 10-20 1200 12.5-15.0
W20 12-22 1000 15-17
W20+ 15-25 800 18-20
W28- 20-30- 700 20-23
W28 20-30 600 23-26
W28+ 20-40 500 26-29
W40- 30-40- 450 29-32
W40 30-40 400 32-36
W40+ 35-45 350 37-41
W50- 40-50 320 41-45
W50 40-60 300 45-50
